Pneumatic Tool Air Hose Production Extruder For Auto Repair Industry
Finished tube OD range: 4mm–16mm, products exported to Europe, USA, Vietnam, India, Turkey and worldwide markets
Revised line speed: Vacuum sizing production speed: 10~15 m/min; Air-blowing lightweight thin-wall production max: 40 m/min
Configuration:
| No |
Equipment |
Quantity |
| 1 |
SJ55/30 or 65/30 Single screw extruder |
1set |
| 2 |
Mould |
1set |
| 3 |
vacuum chamber+cool water tank |
1set |
| 4 |
Haul off machine |
1set |
| 5 |
winding machine |
1set
|
1. Complete Line Configuration
1.1 Raw Material Feeding & Drying Unit
- Automatic vacuum auto feeder: closed dust-free conveying for virgin TPU pellets, avoid dampness and dust pollution.
- Hot air drying hopper: precisely control temp 80~120℃, keep TPU moisture below 0.05%, prevent hydrolysis, ideal for humid climate like Vietnam & India.
- Optional gravimetric color masterbatch doser: ±0.2% dosing accuracy for consistent colored TPU hose.
1.2 SJ65 Single Screw Main Extruder (YAOAN Original Design)
- Screw & barrel: 38CrMoAlA, integral nitriding treatment, L/D=28:1, specially optimized for polyester & polyether TPU to avoid scorch and crystal spot.
- Driving: 18.5kW main motor with ABB inverter, Omron multi-zone PID temperature control, tolerance ±1℃.
- Heavy-duty hard-tooth reducer for continuous 24h stable running, suitable for global factory condition.
1.3 Modular Extrusion Die Head for 4–16mm OD Tube
S136 stainless steel die set, interchangeable die mandrel for full 4/6/8/10/12/14/16mm sizes, changeover within 40min.
Two forming modes available:
- Vacuum sizing process: forming by negative pressure vacuum, running speed: 10~15 m/min, for standard thick-wall industrial pneumatic hose with strict OD & wall thickness tolerance;
- Internal air blowing forming: stable inner compressed air shaping, max running speed up to 40 m/min, for thin-wall lightweight transparent TPU air tube.
Roundness tolerance ≤0.03mm, wall thickness tolerance ±0.05mm, meet EU & US precision pneumatic standard.
1.4 Vacuum & Gradient Water Cooling Tank
Full stainless steel 4.5m segmented cooling trough with independent vacuum sizing chamber (-0.06~-0.08MPa). Stepwise cooling design eliminates inner stress, optional closed chiller for high-temperature area such as India, Turkey, Vietnam to prevent tube deformation.
1.5 Online Laser Diameter Gauge (Standard for Export Model to EU & USA)
Real-time outer diameter monitoring, closed-loop linkage with extruder & haul-off speed to minimize waste, satisfy ASTM and EU dimensional requirement.
1.6 Servo Belt Type Haul-off Machine
PU soft belt clamping to avoid tube indentation on 4mm tiny tube and over-stretching on 16mm thick tube. Speed synchronizes with main extruder matching two different production speeds: 10~15m/min (vacuum process) / up to 40m/min (air blow process).

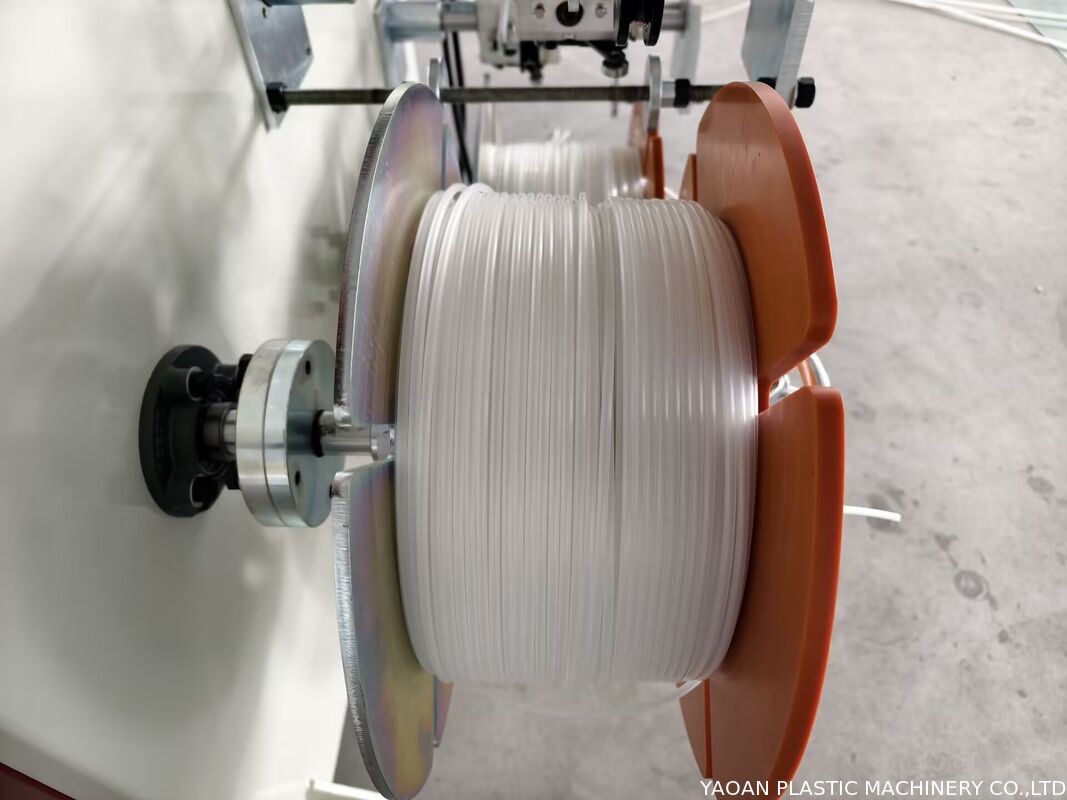

1.7 Constant Tension Auto Winder with Meter Counter
Torque motor controlled winding, auto spool change without line stop, standard roll length 100m/200m matching global packing specification. Optional online ink printer for printing specification, CE mark and brand logo.
1.8 Central PLC Control System
Touch screen HMI with multi-language option (English/Turkish etc.), remote fault diagnosis support for overseas after-sales service.
2. Finished TPU Air Hose Key Properties
- Raw material: Virgin Polyether / Polyester TPU, RoHS & REACH compliant for European market; food-grade optional for US medical & food automation.
- Working pressure: 1.0MPa at 23℃, burst pressure ≥3.0MPa; temp range: -20℃ ~ +70℃, low-temperature resistant for North Europe and high-temperature resistant for India/Turkey.
- Excellent wear-resistance, oil & acid resistance, repeated bending without crack; transparent type allows visual check of internal air impurities.
- Colors: transparent, blue, orange, black, white & customized color.
3. Global Application by Export Region
Europe (Germany, Italy, France, Spain etc.)
Automation assembly line, robotic pneumatic pipeline, food processing equipment, woodworking pneumatic tools, medical small pneumatic devices.
USA Market
Auto repair pneumatic wrench, garden machinery, home appliance automated production, warehouse automatic sorting system.
Vietnam
Shoe factory & furniture factory pneumatic tools, agricultural greenhouse ventilation & small farm machinery air tubing.
India
Textile spinning equipment, general hardware air compressor matching hose, small workshop pneumatic fitting.
Turkey & Middle East
Stone processing, door & window manufacturing, medium & small construction machinery pneumatic pipeline, fit local dry & high-temperature environment.
4. YAOAN Export Advantages
- Complete CE certification, support FDA/RoHS test report for smooth customs clearance in EU, USA, Turkey;
- Customizable input voltage: 220V/380V/415V to fit US/EU/Vietnam/India local power grid;
- Full English operation manual + spare parts list, seaworthy wooden package for global shipment.
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
